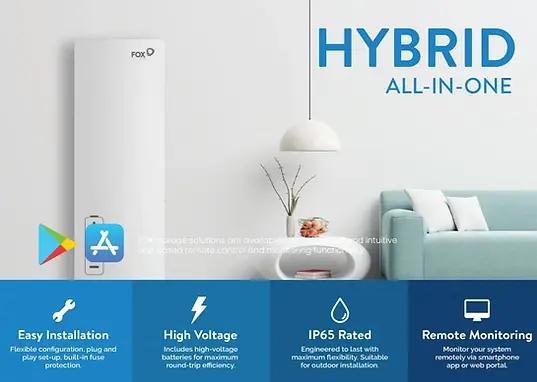

FoxESS - 6kW All-in-One (AIO) Hybrid Inverter

The FoxESS Hybrid all-in-one inverter (AIO-H1-6.0-E) is a solar and storage solution that integrates a 6kW inverter, 10.4kWh high voltage Li-ion storage, solar charge controllers, battery charger, UPS, LAN Port, and Solar DB Board into a pre-wired complete system for easier and faster installation that requires less space, produces no noise due its fanless design and is more efficient than traditional 48V solar panel systems.

The system is a compact all-aluminum system is IP67 rated so it can be installed inside or outside.

Just add solar panels.


FoxESS - AIO SPECIFICATIONS

  • 6kW Single Phase Hybrid Inverter - 30% More Power than most inverters

  • Up to 9kW of solar panels - produce an average of up 42kW/hours per day (location dependant)

  • Battery Capacity - 10.4kW hi-voltage li-ion (LFP) - 15% more efficient than 48V systems

  • Maximum continuous backup power 6kW or 26Amps

  • Phase Aligned inverter - means no inverter load limit on the grid tie supply during grid active periods and can export excess solar power to the grid

  • 2 Independent solar Trackers or MPPT’s allow for flexible installation of panels on two different roofs with different orientations

  • Quick simple installation - low space requirements - floor mounted and only 62cm wide x 34cm deep and 166cm tall

  • A Wi-Fi Module is included for internet monitoring via smartphone with over-the-air updates.

  • IP67 Rated for outdoor installation

  • All the components engineered and integrated by one manufacturer

  • 5 Year Inverter Warranty / 10 Year Battery Warranty

  • South African Grid Certified (NRS97-0-2-1)

Power.SURE.FoxESS     OPTIONS to Choose from..
Custom Designed Solutions Available....
Monitoring System:

Fox offer Module-Level Advanced monitoring on a portal for your Smart Phone (Real-Time) and an online historical Monitoring/Analysis portal which is easy to use, navigate and understand. The monitoring is Free-For-Life.
